Boss SY-1000 F.A.Q.
Started by CodeSmart, August 06, 2014, 10:50:52 AM
0 Members and 1 Guest are viewing this topic.
Quote from: Elantric on August 06, 2014, 10:54:18 AMAlthough myself - I typically prefer a box with dedicated A/B/C/D foot switches
Quote from: whippinpost91850 on August 12, 2014, 07:43:37 AMCurious about this as missed out on your last larger unit

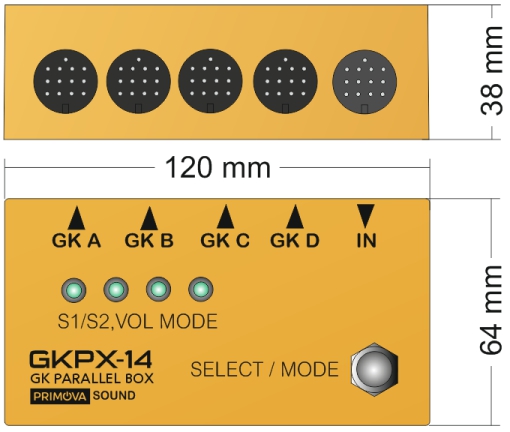

QuoteWhen started Guitar VOL is sent to all outputs. S1/S2 switches are sent to GK A. GK A LED is flashing, thats the Cursor.- When stomping the switch the Cursor cycles through GKB, GKC, GKD and back to GKA etc. shown by flashing LED.- When Double-Stomping, the GK at Cursor position is toggling the S1/S2 mode. Indicated by RED light ON/OFF.- When Holding Down the footswitch a short while, the GK at cursor position is toggling the VOL mode shown be GREEN color ON/OFF.Notes:- VOL is either Guitar VOL setting or MAX setting.- If both RED and GREEN components of LED is lit, the light will be yellowish.- If both S1/S2 and VOL is OFF the cursor is indicated with a short flash-ON- If any of S1/S2 and VOL is ON the cursor is indicated with a short flash-OFF
Quote from: Elantric on August 12, 2014, 07:59:01 AM* I assume "Guitar VOL" = GK VOL (Pin #8 ). How does the user turn Off one of the outputs? (GK-A, GK-B, GK-C, GK-D) or make selections to "enable or disable" a specific output ?* Does it still work if the user has reassigned GK VOL parameter away from volume, to something else on VG-8, VG-88, GR-55, GP-10 like "Delay time or Reverb Depth?
Quote from: Bill Ruppert on August 12, 2014, 05:42:47 PMHoly Smokes you did it..Count me in!!Bill
Quote from: mateomasfeo on August 13, 2014, 06:30:21 PMGreat!Would love to have one...
Quote from: pappywatts on August 18, 2014, 01:28:16 AMYoh Robert, I'm up for one as wellregards
Quote from: billbax on August 25, 2014, 08:15:18 AMPerhaps we could do a GKP4 clone robot wars. How the mind boggles!Bill
QuoteI'll be using my GR-55 Darth Vader breath patch and the GP-10 laser guns.

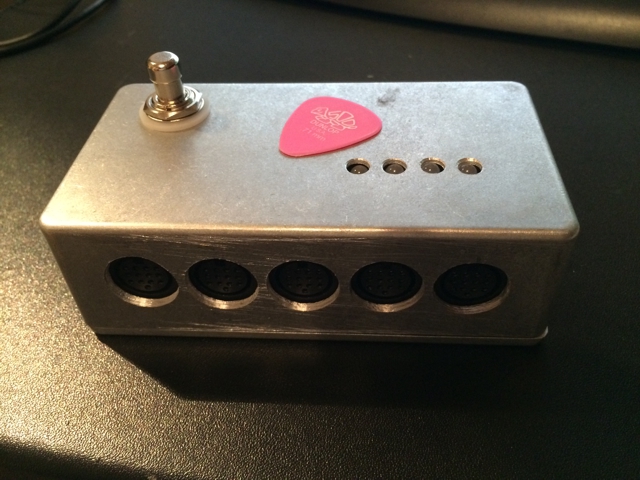

Quote from: billbax on August 25, 2014, 09:24:55 AMYour GKP4 clone looks very nice and compact.

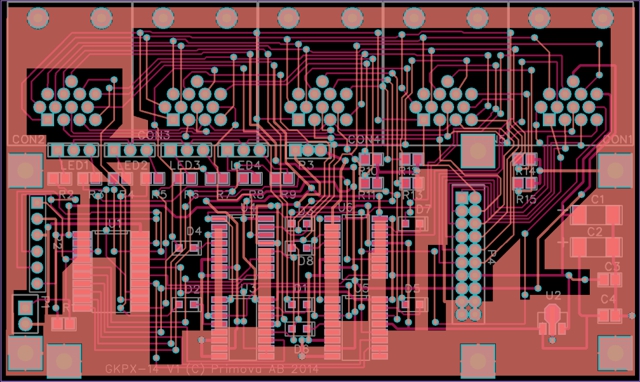

Quote- Even if board is designed with very much ground shields, will the microcontroller radiate audible noise located so close to analog circuitry and connectors?
Quote from: Elantric on August 26, 2014, 02:51:08 PMYou must employ separate "Analog Ground" for Op amps and GK13 jacks and separate "Digital Ground" for CPU. - and then tie them together at one location for a "star ground" arrangement. Some will employ a 10 ohm resistor between AGND and DGND, to decouple any RF Current noise that is rampant in the Digital Ground from the Analog Ground
